Stop Ice Plus Constant power anti-freeze kit complete with thermostat, connection plug and insulation tape

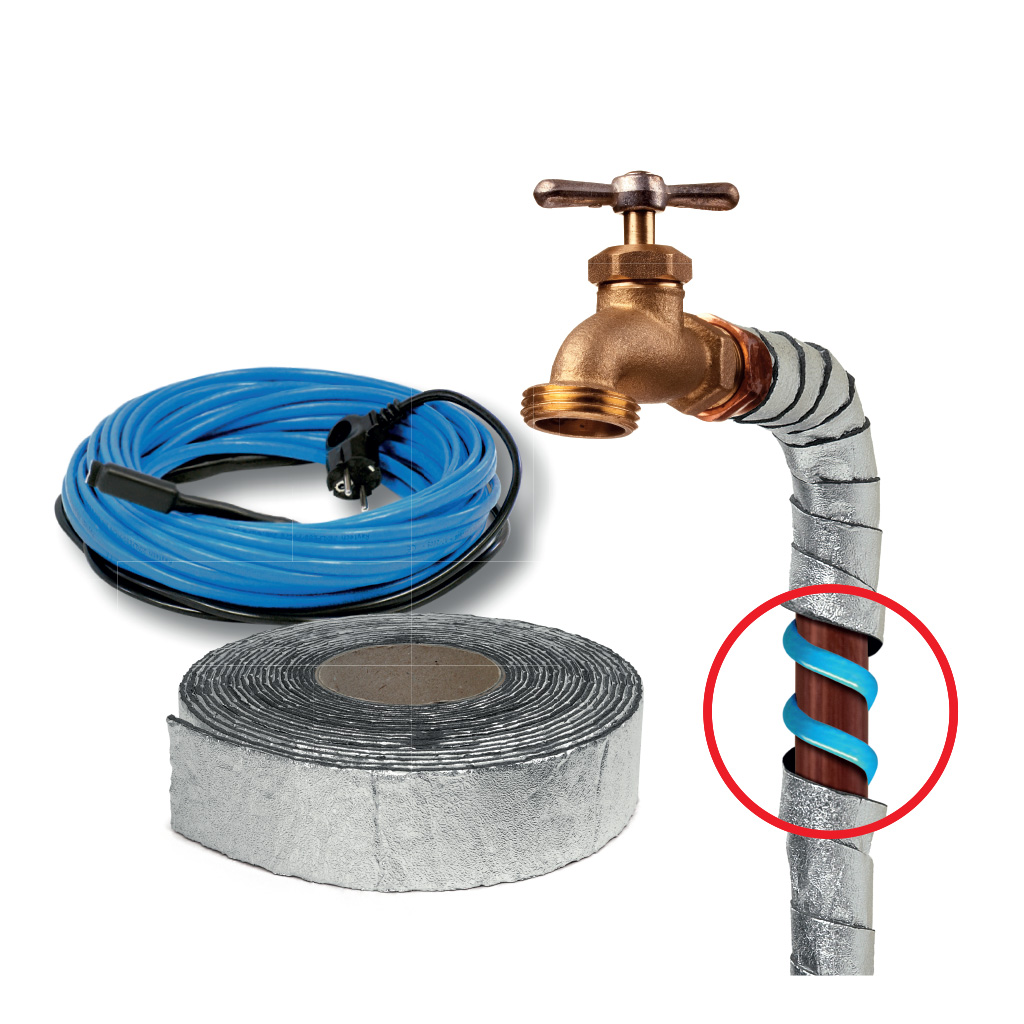

Stop Ice Plus is an innovative kit which combines the flexibility and reliability of the constant power Stop Ice heating cable with the practicality of the LINUS insulation tape. The installer can find everything necessary for tracking inside this kit:
  • Stop Ice 12 W/m constant power cable, complete with connection plug and thermostat

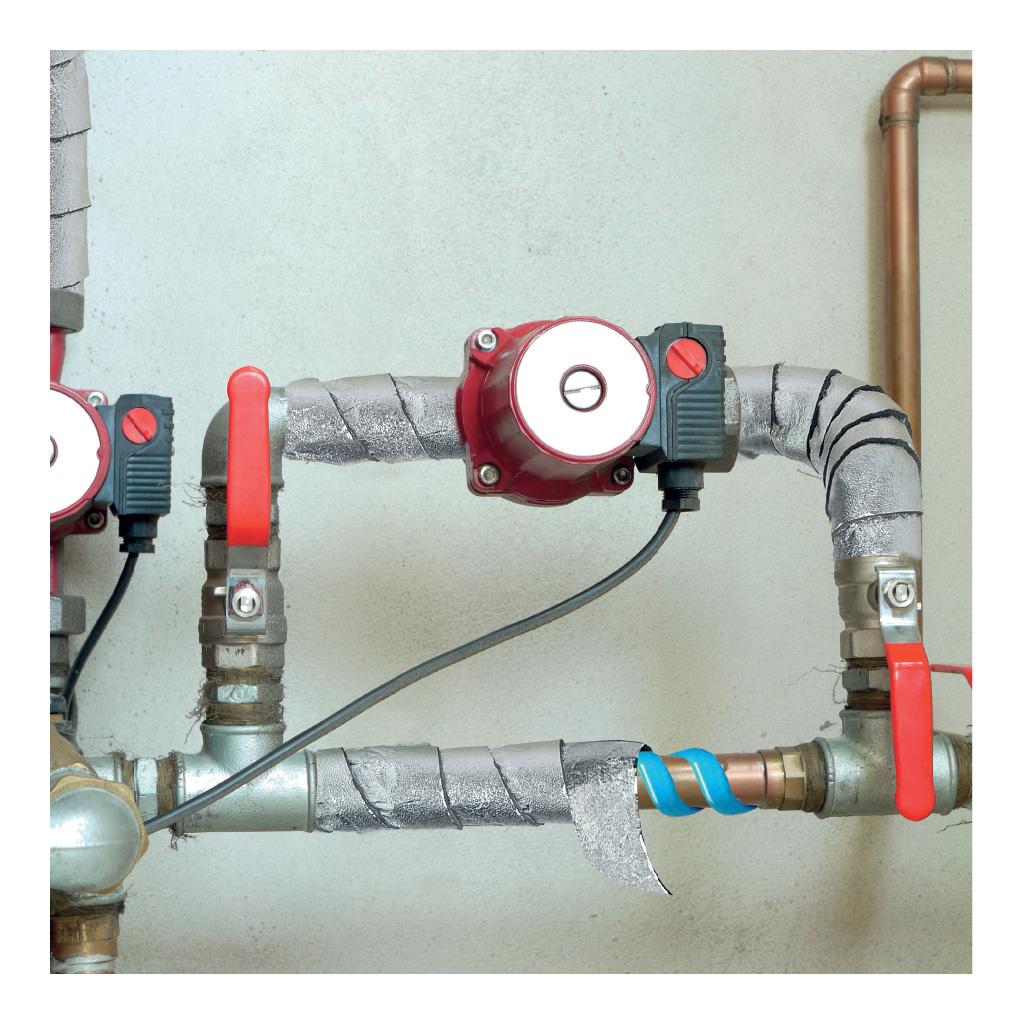

  • 3 mm LINUS insulation tape, for application on already tracked piping with a cable with 50% overlap
As an example, with a 10 m long LINUS tape, about 2.2 m of ¾”, traced with the Stop Ice cable, can be insulated.

CABLE
Specific power:
12 W/m
Power supply: 230 V- 50Hz
Cold cable: 3 x 0,75 mm² – L = 1,5 m
Temperature control: integrated bimetallic thermostat
ON / OFF: +3°C / +10°C

INSULATION TAPE
Temperature range: -50 / +105°C
Coefficient of thermal conductivity (λ): 0,039 W/mK a 50°C
Dimensions: 50 mm x 3 mm x L10 m
