Data sheet

Magic Box IP68

  • Description
  • Technical features
  • Video

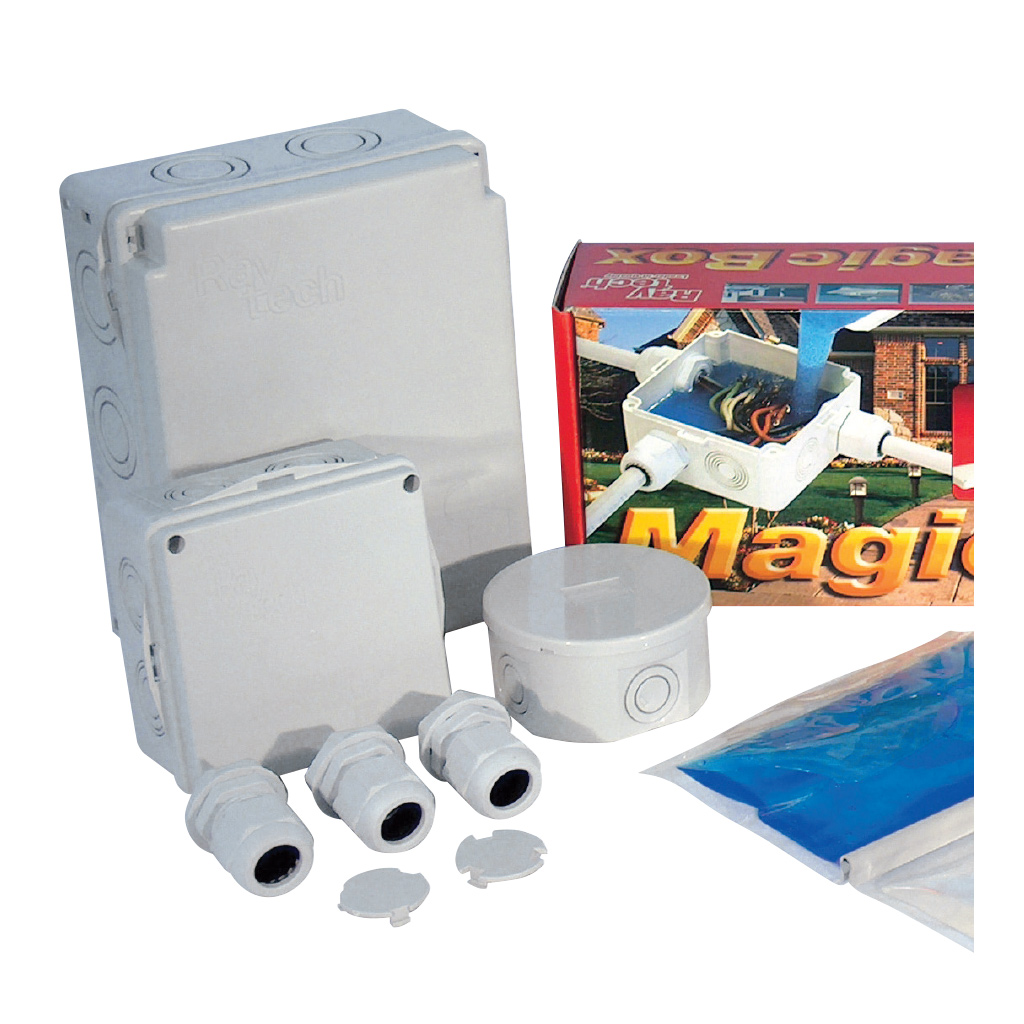

IP68 Connection kit complete with Magic Fluid insulating gel

Universal IP68 kit without shelf life, mechanically robust, non-toxic, suitable for installation even in the most extreme conditions, re-enterable, meeting all international standards. Protects from water, moisture, dust and accidental contact caused by small animals.
  • Re-enterable even after long periods of operation
  • Able to absorb external shock without fracturing
  • For installations even at high depths
  • Also suitable for vertical filling
  • No shelf life
  • Non toxic and safe

Electrical Performance:
CEI EN 60529
Degree of protection:
IP68 Class 2 in accordance with CEI 64-8
Gel: UL 94-HB
Operating temperature: 90°
Operating temperature of the gel: -60°C / +200°C
HF: Halogen Free in accordance with CEI EN 50267 2-2
