  • Happy Joint
Data sheet

Happy Joint

  • Description
  • Technical features
  • Video

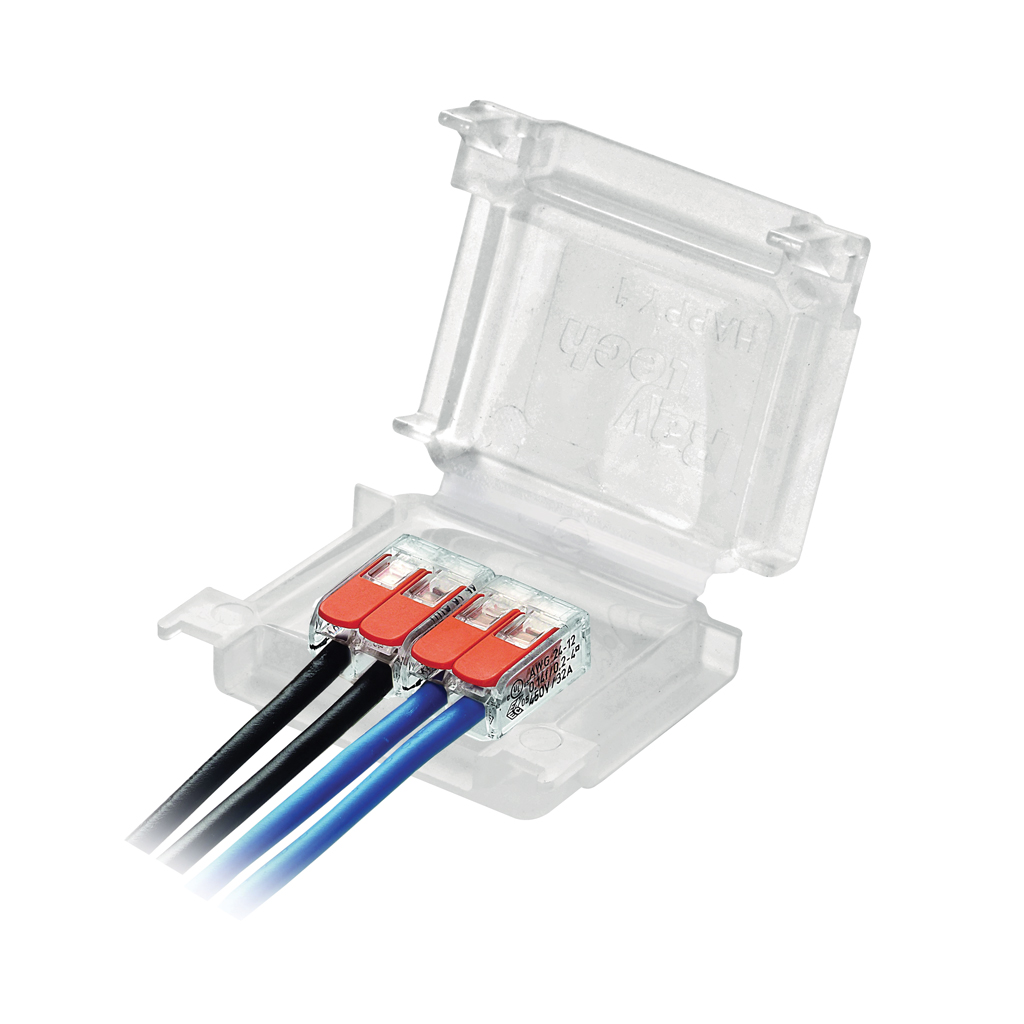

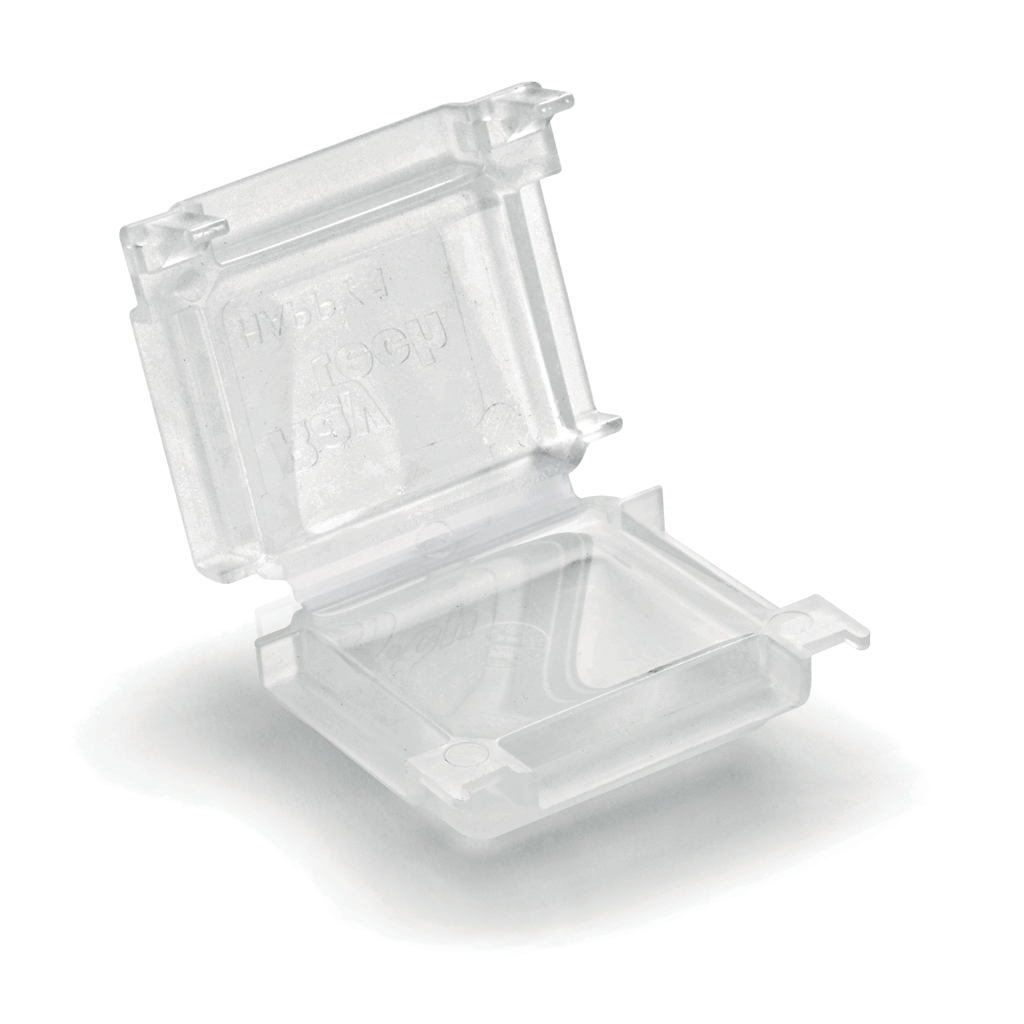

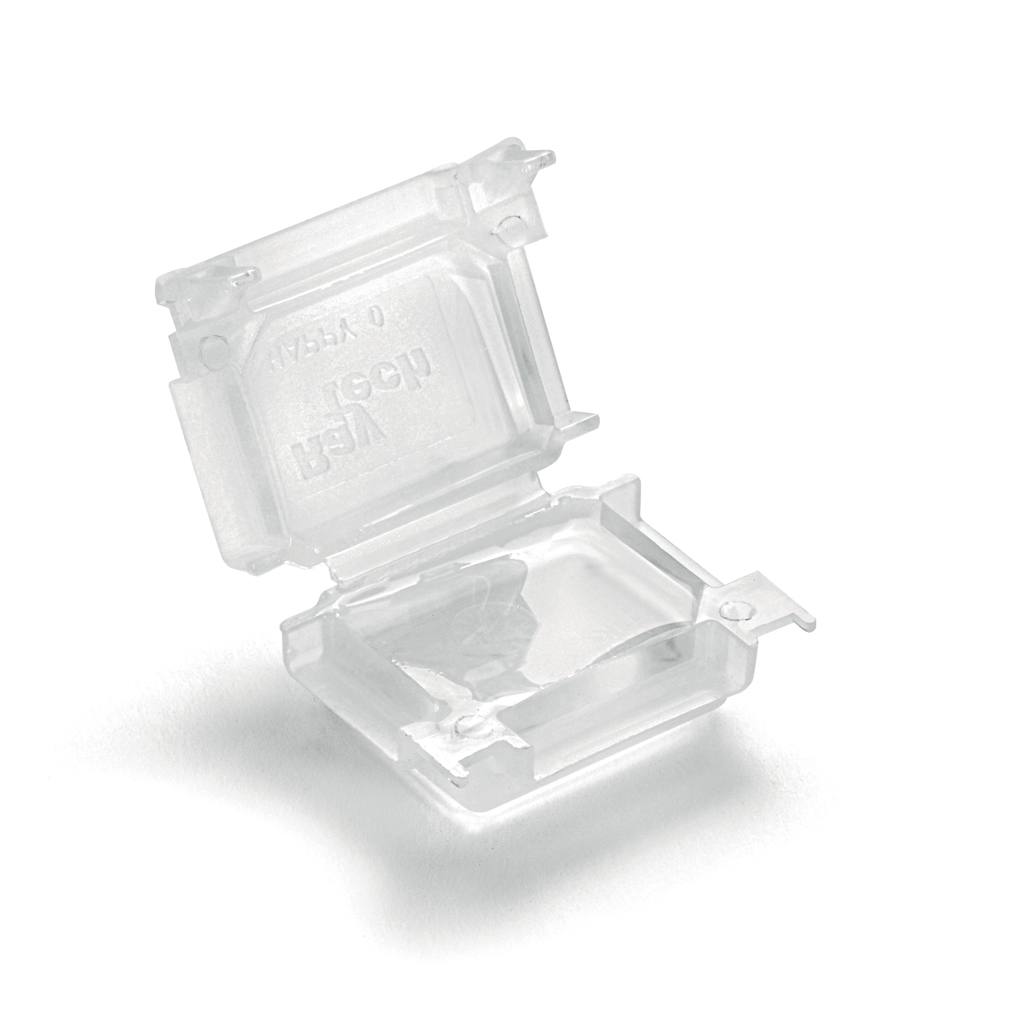

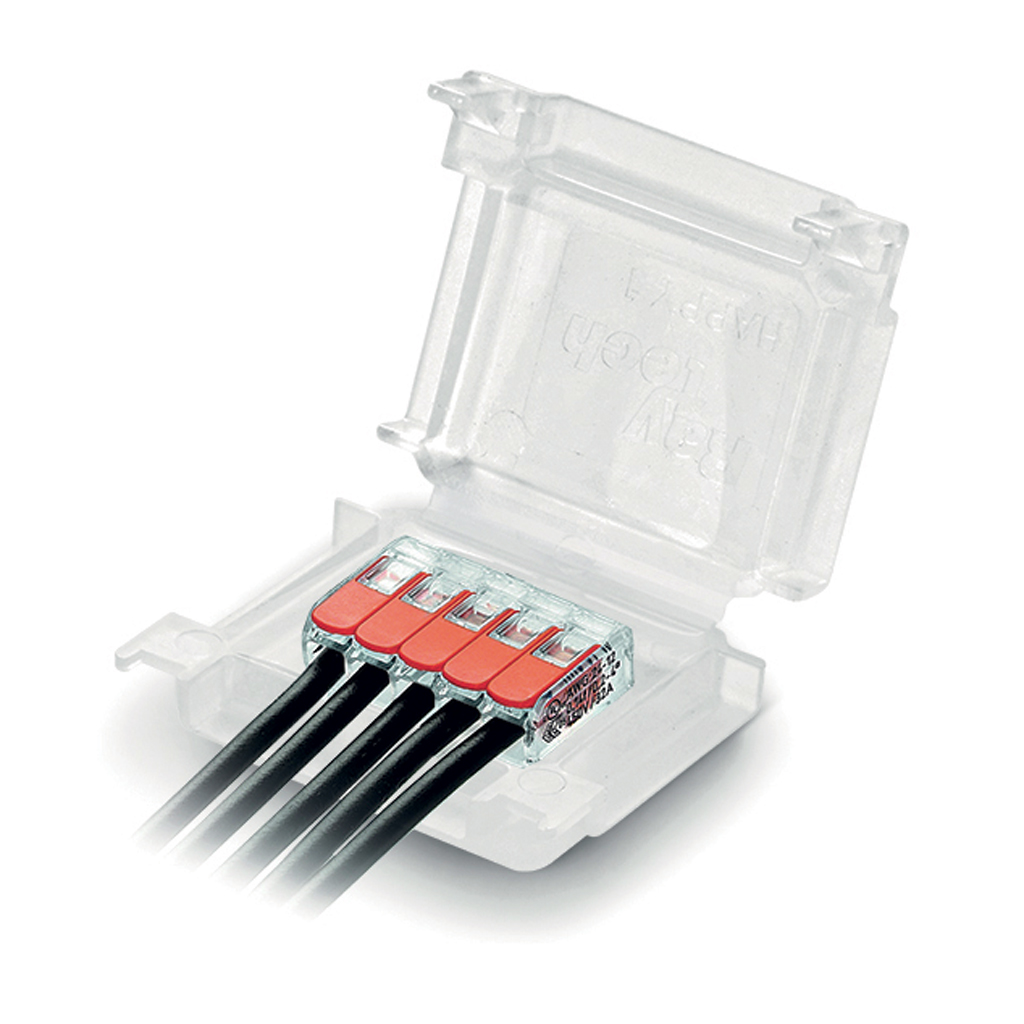

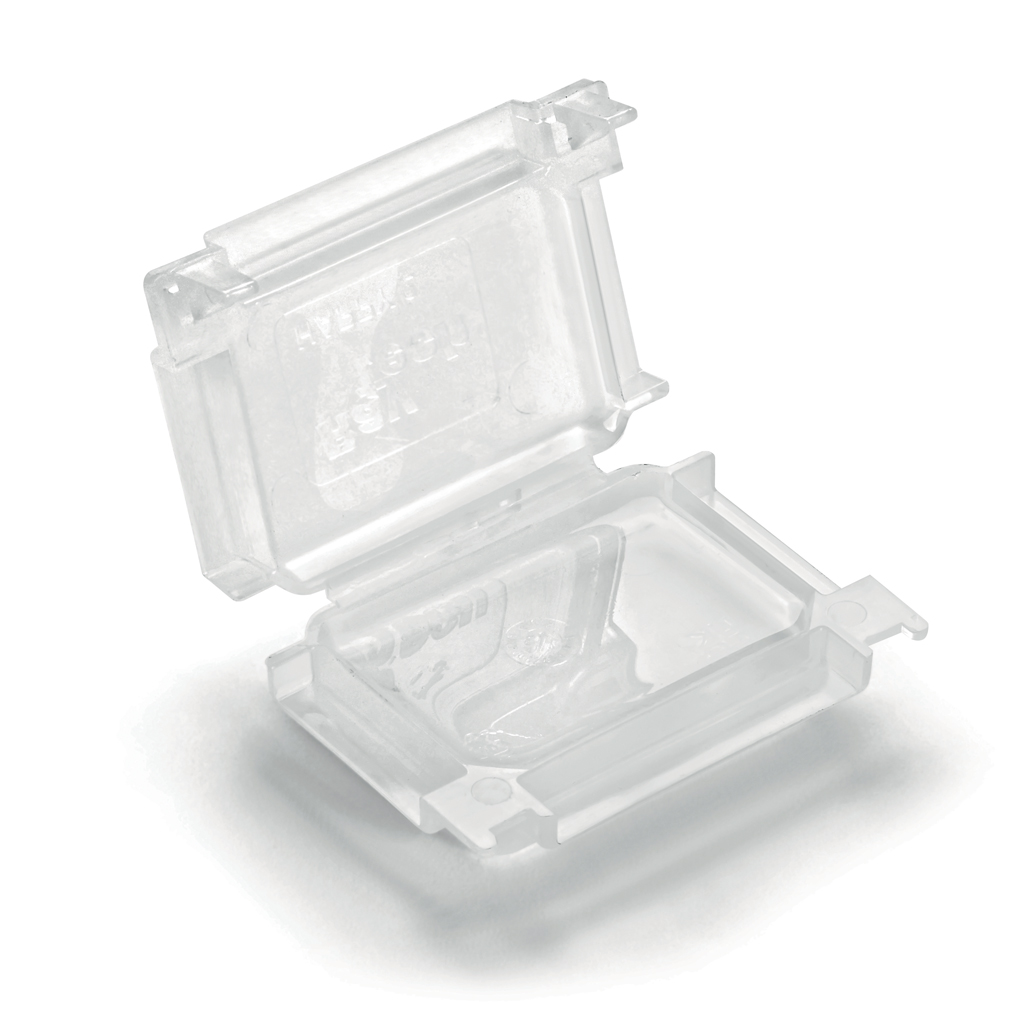

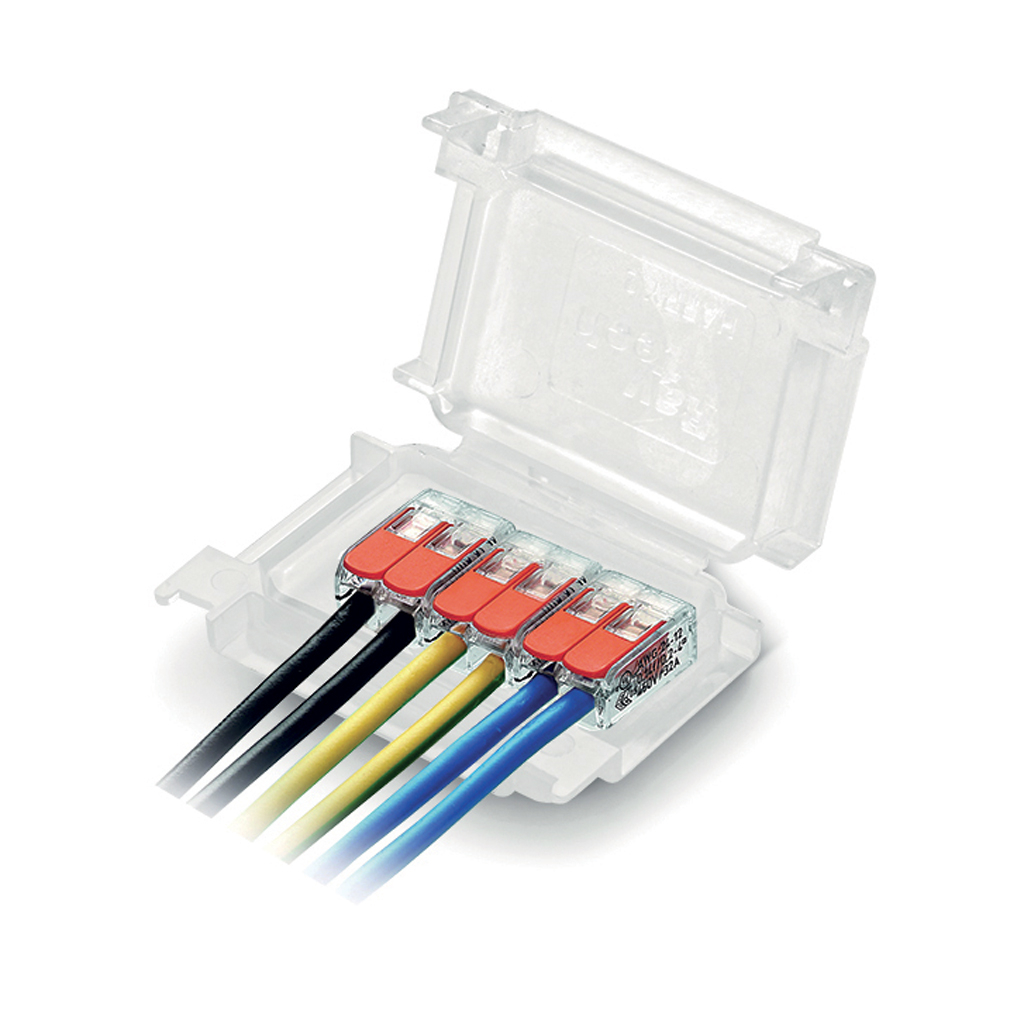

The revolutionary mini accessories with 3 entrances, pre-filled with gel and suitable for submersible installations (IPX8) complete with connectors

  • Extremely versatile - ready to use - re-enterable
  • Small, compact and robust
  • No need for tools
  • Pre-filled with gel, non toxic and no shelf life
  • Can energise immediately
  • For straight and branch connections
  • For rigid or flexible insulated wires up to 6 mm²
  • Up to 5 conductors on one phase or up to two conductors on two or three phases
  • Halogen free
  • UV resistant

Electrical performance: CEI EN 50393:2006
as applicable
Gel: UL 94-HB
Operating temperature: 90°
Installation temperature: -40°C / +50°C
Fully submersible
Can be used underground
